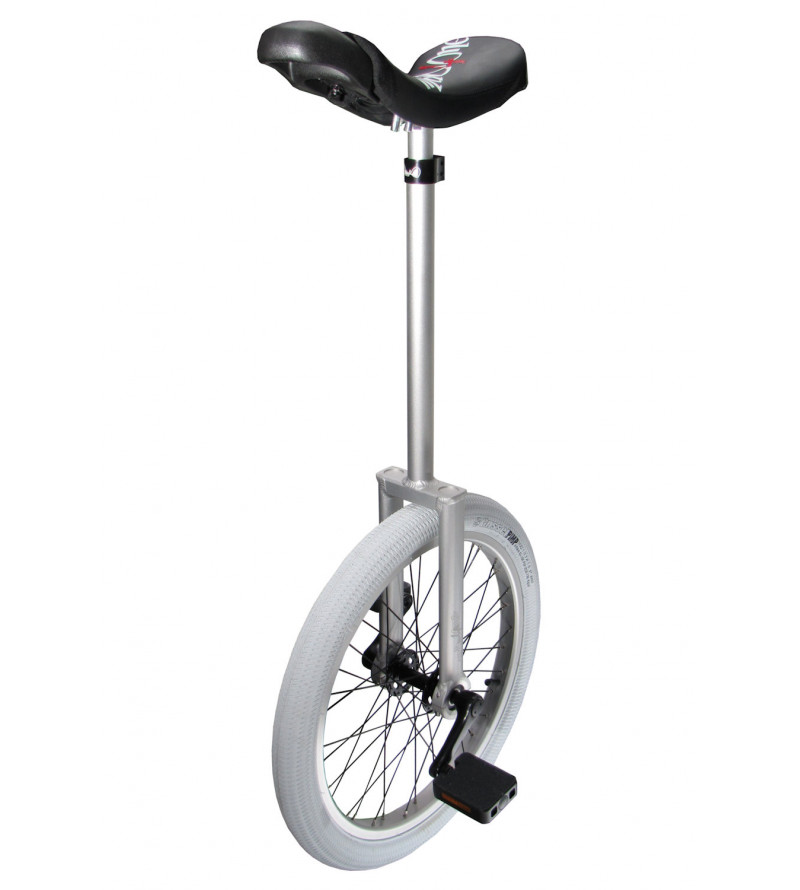

20" Unicycle for Freestyle Cotterless - Mad4One Freestyle 100 *Required step


Square-shaped frame made from aluminum alloy AL6069-T6, seat post MAD-XXL 27.2 mm, 100 mm cotterless hub and cotterless cranks, 20-inch wheel. This is the Mad4One's unicycle for freestyle in the basic setup. You can choose the standard configuration we propose, or basically change everything from color to components such as saddle, rim, cranks, pedals, clamp and tire. Build your own customized freestyle.




COLOR CUSTOMIZATION



INSURED SHIPPING



LEADTIME

THE MAD4ONE UNICYCLES FOR FREESTYLE

Whether for the World Championship or a personal challenge, what unites these athletes is not their level or the medals they’ve won, but their dreams, desires and strength to pursue their goal and overcome any obstacle. It is for and with formidable girls and boys like them that we developed and go on improving the best unicycles for freestyle paying great attention to performance, quality and innovation. With our MAD-Freestyle we offer you the tool you need to achieve your dreams, transmit your  passion and share your emotions.

KEY PERFORMANCE FACTORS

MORE STIFFNESS AND STABILITY - GREATER CONTROL AND HIGHER PERFORMANCE

The square-shaped Mad4One frames are made of aluminum alloy AL6069-T6, which differs from the common AL6061-T6 in the following aspects: superior resistance to deformation up to +30%, greater load resistance and greater load resistance in presence of corrosion. Light, however stiff and strong, the MAD-Freestyle is the best choice for a long lasting unicycle. The 27.2 mm seatpost and the 31.8 mm vertical tube make this frame much more stiff and stable than the ones with smaller diameters. The most critical point of the unicycle frame is the junction between vertical tube and crown. The MAD frame has a triple butted reinforced vertical tube that gives extra rigidity and strength to the entire structure. On all our frames, both in steel and aluminum, it is not necessary to mount a very long seatpost to increase stiffness and stability, it is enough to insert the seatpost only 10-15 cm to ensure the best robustness. All the excess seatpost part is useless and it is just extra weight you carry with you.

MAD-FREESTYLE 90 OR 100? YOU DECIDE

The MAD-freestyle frames offer a larger flat crown to ensure high comfort, control and hold, without interfering with the calf. Stand-up and coasting tricks become much easier. Perfect round edges of the frame make your foot gesture really smooth and fluid. The terms "90" and "100" identify the width in mm of the hub that can be mounted on a frame. This defines also the distance between the pedals and this dimension is measured from bearing center to bearing center. The MAD-Freestyle 90 has been designed to grant the right distance between crown (the flat surface where you place your foot) and the tire 20x1.75 and/or 20x1.95. The MAD-Freestyle 100 has been designed for taller freestylers and for 20 x 2.1 tires, although many Experts prefer to mount on this frame the Mad4One 20 x 1.75 tire. MAD-Freestyle 90 or 100? The choice is very subjective and depends on your style and the tricks you love to perform.

IT'S THE DETAILS THAT MAKE THE DIFFERENCE

All our aluminum parts are anodized in Italy. The broad-based benefits of the anodized finish satisfy most of the factors that must be considered when selecting a high performance aluminum finish: durability, color stability, excellent abrasion and corrosion resistance, aesthetics (unlike other finishes, anodizing allows the aluminum to maintain its metallic appearance.) and, last but not least, anodizing is compatible with today's environmental concerns. Modern architectural anodizing plants are capable of responding to the most stringent environmental standards with full chemical recycling and a large recovery of waste water. Anodizing does not require environmentally sensitive pre-treatment like chromating. The anodizing process does not produce CO2 or solvent emissions. Last but not least, the MAD-Freestyle can also be customized in color, all the aluminum parts can be anodized in the 14 made in Italy colors we offer.

The MAD-Freestyle is the Top-of-the-range for Freestyle and offers also a true advantage for X-Style. Its high quality frame made of advanced-grade aluminum alloy, the shape refined in all details, such as the large flat crown, the triple butted reinforced vertical tube and the perfect round edges, in addition to the rich basket of options as regards cranks and pedals and the wheel hand built by us in our laboratory offer you a new level of control and riding precision. This is confirmed by the great results achieved by many Top Freestylers who have won since 2014 many World Champions on their MAD-Freestyle.

1 The Mad4One SLIM saddle

In freestyle the saddle plays an important role. In many tricks we need to hold it in our hand and it helps us to execute our trick. We’ve designed our freestyle saddles to offer and easy hand grip, even with small hands, and we’ve decided to have the handle without hole to guarantee greater finger safety. The Mad4One SLIM saddle is available in black and white.

3 Great tightness with the 3B Double Clamp

One of the most common problems is the saddle that moves when you ride. The Mad4One one piece CNC machined 3B double clamp is an innovative solution designed by Mad4One that securely locks seatpost and frame together.

5 In Freestyle it's important to have a light wheel

In freestyle a light, but strong and reliable wheel makes the difference. Lightweight wheels accelerate faster than heavy ones and this helps when you’re off from a stop. Lighter wheels also decelerate faster. Tire an rim determine the weight of the wheel of the unicycle. The Mad4One 20” Freestyle tire is very light, rigid and can be inflated at really high pressure. As Kristina Ratzka says: “ … I've the feeling that with this tire I can both jump well and make a good Gliding. However, the biggest benefit I've got with this tire is that it's the fastest tire I've tried so far!..”. The rim is the second element that determines the lightness of the wheel. The MAD-Mirror-17 is a very light and stiff rim, it’s the one mounted on the MAD-Freestyles of the World Freestyle Champions of the last UNICONs. In recent years we have added a second option: the MAD-Round-32, equal in weight to the MAD-Mirror, but even more robust. Last, but not least, the hub: if you mount the Mad4One made in Italy you have a drastically lighter ISIS hub (approx. half the weight of the MAD-Tecno). We made it from Ergal AL7075-T6 aluminum alloy and CNC machined from solid (one piece). You find it as option in the most advanced setups of our Freestyle and Race unicycles.

2 Unbreakable Seatpost

The 40 cm one piece 3D forged Mad4One XXL is the longest and strongest seatpost of ever. The higher part of the tube is double butted to avoid any breakage. The saddle holder is inclined by two degrees and can be used in both directions.

4 The frame, stiff, stable and reliable, born from competition

Better material always means longer life, as well as more stiffness and better performance. The square-shaped Mad4One frames are made from aluminum alloy AL6069-T6 that differs from the common AL6061-T6 in the following aspects: superior resistance to deformation up to +30%, greater load resistance and greater load resistance in presence of corrosion. But that’s not all. Shape and thickness of the tubes play an important role, too. The square frames have an interlocking depth of 22 mm (the point where the vertical tube interlocks the flat crown). Through experience we learned that if we decrease the interlocking depth the exerted strains at that point become so great that they compromise the durability and often also the stiffness of the part. With lower interlocking depth we significantly reduce the life of the frame and run the risk that the frame will suddenly break at that spot.

6 All our wheels are hand built

The wheels mounted on our unicycles are all hand built by us in our laboratory and arranged in a 4X spoke pattern. The term “pattern” indicates the number of intersections that a spoke makes before reaching the rim. In a 4 cross-pattern wheel every spoke intersects four others between the hub and the rim. Crossing the spokes over helps them handle the pedaling braking torque being transmitted from the hub to the rim. The 4X lacing pattern requires an accurate and more expensive assembly process, that combined with the high quality components used, ensures a much better durability and resistance of the wheel.

7 A wide range of ISIS cranks, from 60 mm to 105 mm, all made from ERGAL AL7075-T6

All aluminum cranks mounted on our unicycles are 100% compatible with any ISIS-hub and are made from forged ERGAL aluminum alloy AL7075-T6. The most important advantages of this alloy are  its high mechanical characteristics. For example the yielding strength of AL-6061 is 140 N / mm2 while AL-7075 has a yield strength of 520 N / mm2, which makes this high quality alloy widely used in aerospace applications. For the MAD-Freestyle we offer a wide range of cranks, from the very short 60 mm, ideal for acquiring great control and mastery in training, to the classic 80, 90 or even 105 mm. Two product lines are available: the Made in Italy cranks, super light and refined in shape, and the MAD-Tecno, super strong and with an excellent and large foot surface.

Usually in freestyle the unicycle is preferred in a neutral color. The colors most chosen for the frame are silver, slate gray or in some cases black. This makes the unicycle easy to combine with the colors of the costume and with the unicycles of our freestyle group. But some freestylers have decided to add a signature feature such as a light blue or red rim with the seatpost clamp of the same color, that recall the colors of the club they belong to or simply because they want to make their unicycle more unique.

TECHNICAL DRAWINGS AND DIMENSIONS

MAD-FREESTYLE FRAME 100

SEATPOST DIAMETER: 27.2 MM

BEARING SPACING: 100 MM

BEARING SIZE: 42 MM

MAX. TIRE SIZE

MAD-FREESTYLE 100: 20" X 2.30 or 20" x 2.60

THE MATERIALS

FLAT-SHAPED MAD-FRAME 90 AND 100

Welded - anodized
Aluminum  AL6069-T6

CRANKS

URC Cotterless
Forged - lacquered

Steel

HUB

URC Cotterless
Lacquered

Chromium molybdenum steel CrMo-4130

SEATPOST

MAD4ONE XXL 27.2 mm
Forged in one piece - Anodized
Aluminum AL6061-T6

SEATPOST CLAMP

MAD4ONE 2-BOLTS OR 3-BOLTS DOUBLE CLAMP
CNC machined - Anodized
Aluminum  AL6061-T6

RIM

MAD4ONE OR URC
Pinned - Anodized
Aluminum AL6061-T6

SPOKES

SAPIM
14G – Silver
Steel

NIPPLES

Brass Nickel Plated - Silver
